Robot Laser / Camera

Robot Laser and Camera Modules: Perception Upgrades for Mobile Platforms

Perception hardware defines what a robot can understand about its surroundings. Laser sensors give precise geometric measurements for mapping and obstacle detection, while cameras add rich visual context for inspection, recognition, and remote operation. This category brings together laser and camera modules for robotic platforms, including LiDAR units, vision modules, and imaging payloads used to extend the sensing capability of quadrupeds, mobile robots, and other machines.

Buyers arrive here for two main reasons: to replace or upgrade the perception hardware on an existing platform, or to add new capability, such as 3D mapping, night operation, or detailed visual inspection, that the base configuration does not include. In both cases, matching the sensor to the platform's mechanical, electrical, and software interfaces is the core of a successful purchase.

What This Category Includes

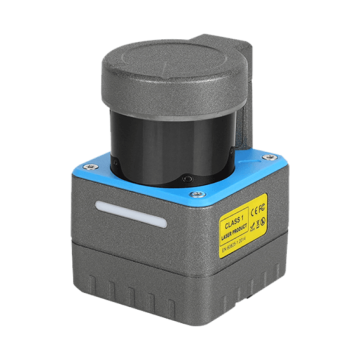

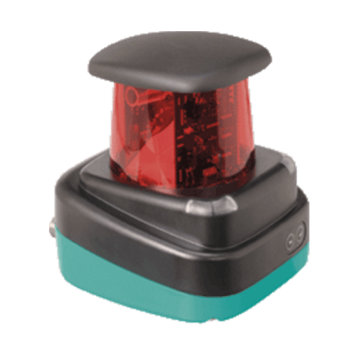

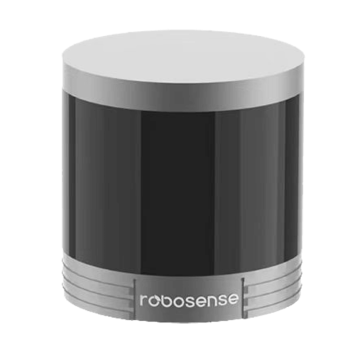

• LiDAR modules: Scanning laser sensors for mapping, localization, and obstacle detection, in 2D and 3D variants.
• Camera modules: Vision units for navigation support, recognition tasks, and operator situational awareness.

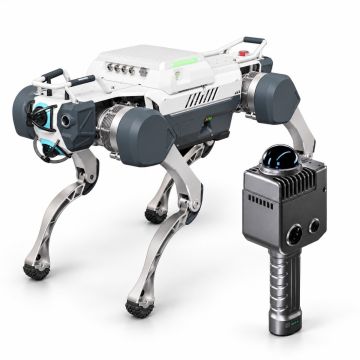

• Specialized imaging payloads: Modules oriented toward inspection work, including options for low-light or detail-focused capture on supported platforms.
• Mounting and interface hardware: Components that attach sensors to robots and connect them to onboard power and compute.

Laser vs. Camera: Complementary Roles

Laser sensors measure distance directly and perform consistently across lighting conditions, which makes them the backbone of SLAM navigation and reliable obstacle detection. Cameras capture texture, color, and detail that lasers cannot, enabling reading of labels and gauges, visual anomaly detection, and better remote-operation awareness. Most capable robot configurations combine both: LiDAR for geometry and localization, cameras for context and inspection. When planning an upgrade, consider what the robot currently misses, whether that is mapping fidelity, low-light performance, or visual detail, and select the modality that closes the gap.

Integration Considerations

Before choosing a module, verify four things. Mechanical fit: available mounting points, mass budget, and effect on the robot's balance and clearance. Electrical supply: voltage and power draw against what the platform provides. Data interface: Ethernet, USB, or other links, and whether the onboard computer has capacity to process the stream. Software support: driver availability, SDK integration, and compatibility with the navigation or inspection stack in use. Payload additions can also change a robot's regulatory and safety profile, so integrators should evaluate the complete configuration rather than the sensor alone.

Pricing and Availability

Sensor pricing varies with modality, range class, and platform integration requirements. Pricing is offered on a request-for-quote basis so compatibility with your robot and software stack can be confirmed as part of the proposal. Send an inquiry from the relevant product page with your platform model and intended application, and a specialist can follow up with a recommendation, tailored quotation, and current availability.

Frequently Asked Questions

Do I need LiDAR if my robot already has cameras?

Cameras and lasers solve different problems. If you need dependable geometric mapping and obstacle detection across varied lighting, LiDAR is usually the right addition; for visual detail and recognition, cameras lead.

Will a new sensor work with my robot's software?

Software support depends on drivers and the platform's SDK or navigation stack. Include your robot model and software environment in your inquiry so integration compatibility can be checked in advance.

Can adding a sensor affect the robot's performance?

Additional mass and power draw can influence runtime and dynamics, and processing a new data stream consumes compute. These effects are manageable when the module is sized to the platform's budgets.

What details should I provide when requesting a quote?

Your platform model, existing sensors, the capability you want to add, the operating environment, and your software stack. This allows a precise recommendation on the first response.
