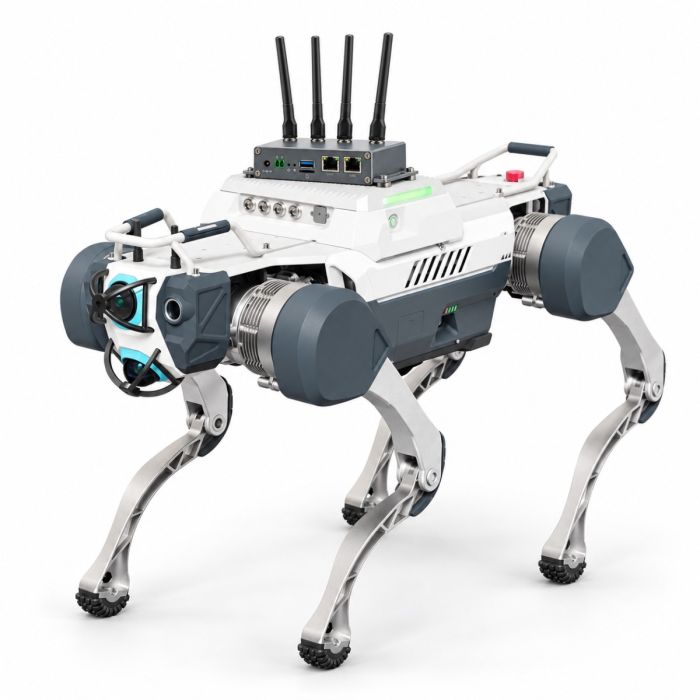

Deep Robotics X30 Lierda MX880 5G Module

Deep Robotics X30 Lierda MX880 5G Module

Deep Robotics X30 Lierda MX880 5G Module is a Deep Robotics-compatible accessory for X30. It is intended for robotics inspection, public-safety, emergency-response, industrial, or field-operation deployments where compatible X30 and/or M20 systems need additional capability.

Compatibility

• Compatible platform(s): X30
• Source/supplier brand: Lierda
• Model: MX880

Specifications

"Hardware system:
CPU: 32-bit dual-core processor
Memory/Storage: 256M Byte LPDDR3+32M Byte Flash
Interface
Ethernet: 2x10/100/1000M LAN interface (RJ45)
SIM card slot: 1xMicro SIM, compliant with ETSI and IMT-2000 standards
USB interface: Type-C interface, used for module upgrade
Reset button: Manual reset button
Theoretical rate
5G NR: NSA (DL/UL): 2.2 Gbps/575 Mbps; SA (DL/UL): 2 Gbps/1 Gbps
4G LTE: DL/UL: 600 Mbps/150 Mbps
Operating frequency band
5G NR: n1/n20/n28/n41/n77/n78/n79
4G LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28/B34/B38/B39/B40/B41
Wi-Fi: 802.11b /g/n
Mechanical properties
Overall dimensions: 131.5*88*27.4 (LWH) mm±0.5mm
Installation method: Desktop/Wall-mounted
Shell: Aluminum alloy (iron gray)
Weight: Approximately 300g (excluding antenna)
Indicator lights: PWR (power), 5G, 4G, SYS (system) LED working indicator lights
Power supply
Power supply voltage range: Input voltage: DC 9-36V, recommended DC12V
Average operating current: 0.6A (12V)
Peak operating current: 1.3A (12V)
Average standby current: 0.3A (12V)(Standby state after successful dialing)
Other parameters
Operating temperature: -20°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity: 5% to 95% RH (no condensation)

Integration Notes

Robot(Power+Control)
Controllor(Essentiall)
Software(Essential)

Pricing and Availability

Availability is subject to confirmation before fulfillment.
